EASUN ISolar Hybrid Inverter 24V 4200W Pure Sine Wave 6.2KW AC Charger MPPT Solar Controller

Name: EASUN ISolar Hybrid Inverter 24V 4200W Pure Sine Wave 6.2KW AC Charger MPPT Solar Controller
Brand: EASUN
SKU: 3256805768221340
Availability: InStock

$305.25 – $427.92

Available in stock

Features

Introducing the EASUN POWER SMH-III-4.2KW Off-Grid Hybrid Solar Inverter with Dual Outputs. This 4200VA/3800W inverter features Pure Sine Wave output, configurable settings for input voltage range and battery charging current, and compatibility with mains voltage or generator power. With overload, over-temperature, and short circuit protection, this inverter ensures optimized battery performance. Includes WIFI for easy connectivity. Ideal for off-grid applications.

Ships From

color

Output Voltage

Please select a variation to see estimated shipping cost.

Compare Wishlist

SKU: 3256805768221340 Brand: EASUN

People Also Viewed

Additional Information
Video

Additional Information

Hign-concerned Chemical	None
is_customized	Yes
Output Frequency	50HZ 60HZ
Model Number	SMH-II-4.2KW
Output Power	1 – 200KW
Type	DC/AC Inverters
Weight	7kg
Size	423290100mm
Output Type	SINGLE
Brand Name	EASUN POWER
Origin	Mainland China
Certification	CE,RoHS
Rated Power	4200VA/3800W
Input Voltage	230Vac
Frequency Range	50Hz/60Hz (Auto detection)
OUTPUT Voltage	230VAC5%
Wave form	Pure Sine Wave
Battery Voltage	24VDC
Maximum charge current	80A

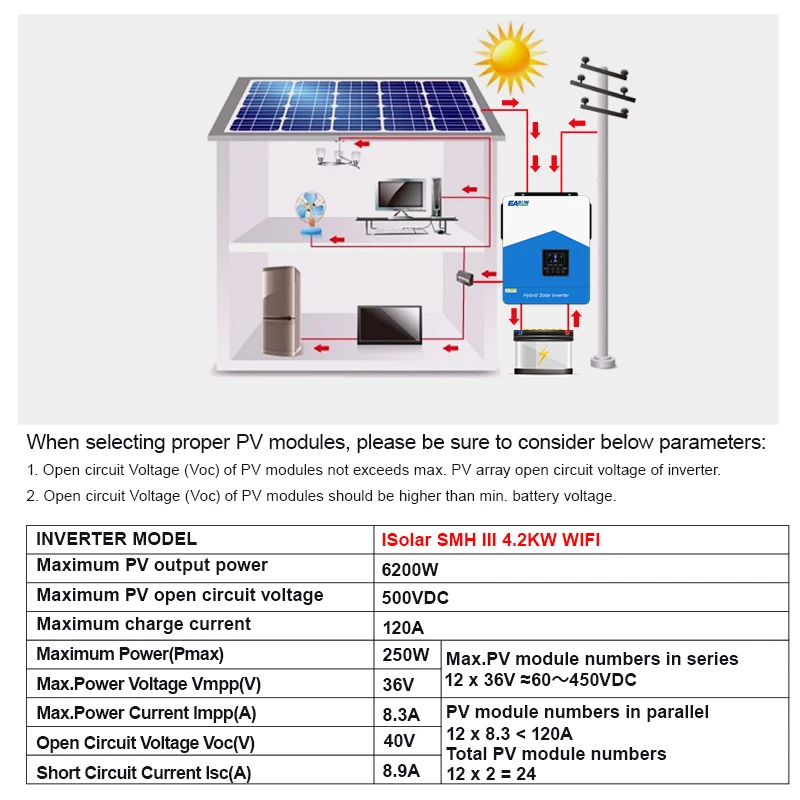

MAX PV Array Power	6000W
MPPT Range Operating Voltage	55-450VDC
Communication Interface	RS232/RS485(Standard) / GPRS/WIFI(Optional)
Off-grid inverter	Solar Charge Controller
inverter 24v hybrid	inversor solares hibrido
hybrid solar inverter 24v	inwerter hybrydowy 24v
inversores solares	onduleur solaire hybride
inwerter hybrydowy	inversor hibrido 24v

Video

Description

The EASUN POWER SMH-III-4.2KW Off-grid Solar Inverter is a high-quality power solution suitable for various applications. With a rated power of 4200VA/3800W, this inverter offers a reliable and efficient pure sine wave output. It features a smart design that includes configurable input voltage ranges, battery charging currents, and AC/Solar charger priorities via an LCD setting for personalized usage. This versatile inverter comes with a host of protection features such as overload, over-temperature, and short circuit protection for enhanced safety. It is designed for compatibility with mains voltage or generator power, ensuring uninterrupted operation during power fluctuations. The inverter also boasts a cold start function and auto-restart capability during AC recovery, providing continuous power supply. Equipped with a maximum charge current of 80A, a maximum PV array power of 6000W, and MPPT range operating voltage of 55-450VDC, this inverter offers efficient solar charging capabilities. The inclusion of communication interfaces like RS232/RS485 and optional GPRS/WIFI enables convenient monitoring and control. With its compact size of 423*290*100mm and lightweight design of 7kg, the EASUN POWER SMH-III-4.2KW Inverter is easy to install and ideal for off-grid solar applications.
