is_customized | Yes |
---|---|
Output Current | 80A |
Model Number | PV1800 3024 VPM |
Output Power | 1 – 200KW |
Size | 272*355*100mm |
Output Type | SINGLE |
Weight | 7.5KG |
Output Frequency | 50Hz/60Hz |
Is Smart Device | YES |
Origin | Mainland China |
Certification | CE |
Product name | 145V Off Grid Solar Inverter |
Default Battery System Voltage | 24VDC |
Rated Power | 3000W |
Surge Power | 6000W |
Inverter Efficiency(Peak) | 93% |
Waveform | Pure sine wave |
AC Voltage Regulation (Batt.Mode) | 230VAC±5% (Setting) |
Transfer time | 10ms (UPS / VDE4105) / 20ms (APL) |
Output/Input Voltage | 220-240V |
Maximum PV Array Open Circuit Voltage | 145VDC |
PV Array MPPT Voltage Range | 30-120V |
Maximum PV Input Current | 60A |
Maximum PV Input Power | 2000W |
Maximum Solar Charge Current | 60A |
Maximum AC Charge Current | 20A or 30A |
Maximum Charge Current | 80A(PV+AC) |
Remote Monitoring | Yes, with WIFI-PLUG |
Output Source Priority Selection | SBU, SOL, UTI |
MUST PV18 3024 VPM MPPT 3KW Hybrid Off Grid Solar Inverter with WiFi
$360.08 – $474.88
Available in stock
People Also Viewed
-
Tewaycell 3.2V 340AH LiFePo4 Battery Pack 12V 24V 48V Solar Rechargeable - Tax Free
-
1000V Solar DC Fuses Set 6A-30A 10x38MM for PV System Short Circuit Protection $4.05 – $4.65
-
TONGOU 25mm² Terminals for Busbar Circuit Breaker Distribution Box Wire Connector $4.67
-
Waterproof DPST Marine Rocker Switch 30A 4 Pin LED 6V 12V 24V 110V 220V IP67 T85 $4.81 – $4.85
-
ANENG B12 Voltage Detector Test Pen Electric Screwdriver Probe Sensor $5.07
Description

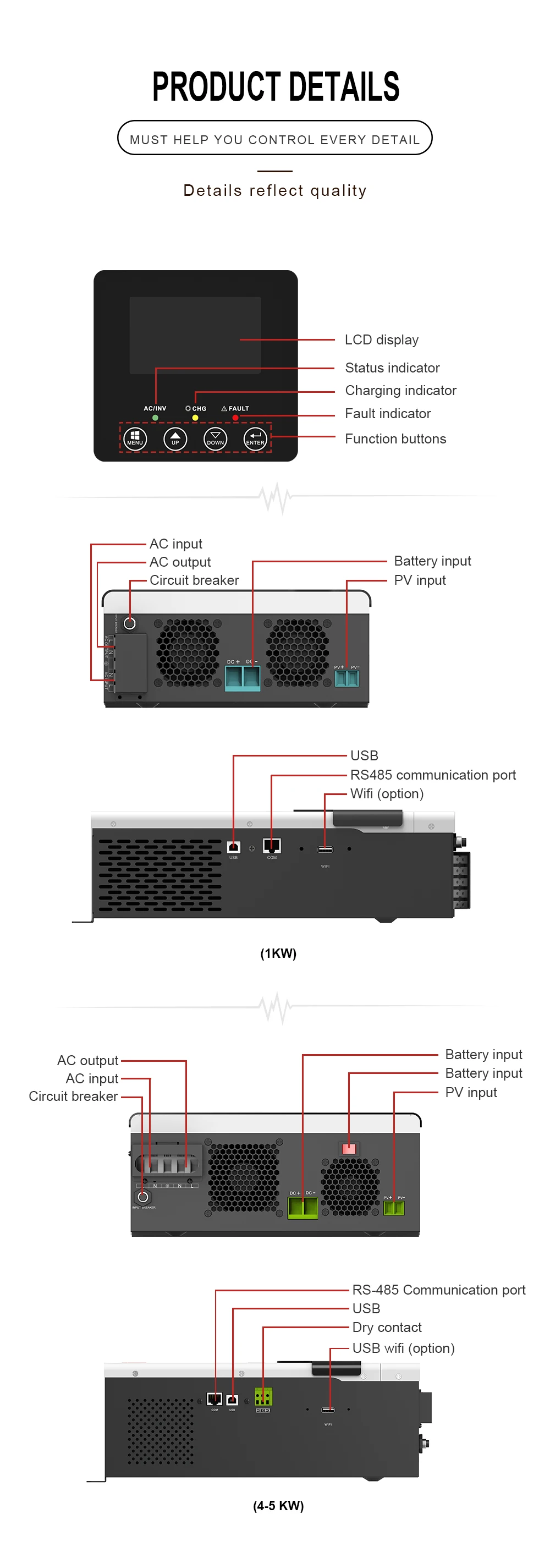

Introducing the MUST PV18 VPM High Frequency Hybrid Solar Inverter, a versatile and efficient power solution for off-grid systems. With a rated power of 3000W and surge power reaching 6000W, this inverter guarantees reliable power support. Its pure sine wave output ensures stable and clean energy for your appliances. This smart device comes with a built-in MPPT 60A solar charge controller and a 30A AC charge controller, enabling seamless integration with solar panels and utility power sources. The inverter is compact, weighing just 7.5kg and boasting dimensions of 272*355*100mm, making it portable and easy to install. The MUST PV18 VPM Inverter features an advanced LCD display for user-friendly configuration, allowing you to adjust settings like charge current, voltage, and power source priority effortlessly. Safety is paramount with overload, short circuit, and deep discharge protection built-in. This inverter supports various battery types, including LiFePo4, Gel, and Lead Acid, offering flexibility for different energy storage options. With remote monitoring capabilities via WIFI-PLUG and USB/RS485 connections, you can monitor your system from anywhere. The output source priority selection feature allows you to define power sources based on your needs – solar, utility, or battery power. Inverters equipped with “SBU” Working Mode ensure uninterrupted power supply during outages, making it ideal for both residential and commercial applications. Upgrade to the MUST PV18 VPM Inverter for a reliable, efficient, and user-friendly energy solution to power your off-grid needs. Ensure peace of mind with MUST ENERGY’s one-year warranty, providing free diagnosis and repair services within the warranty period. Shenzhen MUST ENERGY Power Co., Ltd, a trusted name in the industry, brings over two decades of expertise in developing high-quality power inverters and related solar products. With certifications like CE and ISO9001, you can trust in the quality and performance of MUST products. Make the smarter choice for your off-grid power needs with the MUST PV18 VPM Inverter – a powerhouse of efficiency, reliability, and innovation tailored to meet your energy requirements.
