Hign-concerned Chemical | None |
---|---|
is_customized | Yes |
Output Current | 80A/100A |
Model Number | PH1800 5248 PRO |
Output Power | 1 – 200KW |
Size | 309*505*147mm |
Output Type | SINGLE |
Weight | 14.5KG |
Brand Name | Must |
Output Frequency | 50Hz/60Hz (Auto sensing) |
Is Smart Device | YES |
Origin | Mainland China |
Certification | CE,RoHS |
Product Name | High VOC on/off grid solar inverter |
Nominal Battery System Voltage | 48VDC |
Rated Power | 5200W |
Surge Power | 10400W |
Inverter Efficiency | 93% |
Waveform | Pure sine wave |
AC Voltage Regulation (Batt.Mode) | 230VAC±5% (Setting) |
Transfer time | 10ms (UPS / VDE4105) / 20ms (APL) |
Voltage | 220-240V |
Maximum PV Array Open Circuit Voltage | 450V |
PV Array MPPT Voltage Range | 150-430V |
Maximum PV Array Input Power | 5200W(80A MPPT) / 6000W(100A MPPT)) |
Maximum PV Array Input Current | 18A(80A MPPT) / 27A(100A MPPT) |
Maximum Solar Charge Current | 80A/100A |
Maximum AC Charge Current | 60A/80A |
Remote Monitoring | yes, with WIFI-PLUG |
Parallel Function | Yes, 2-3pcs suitable |

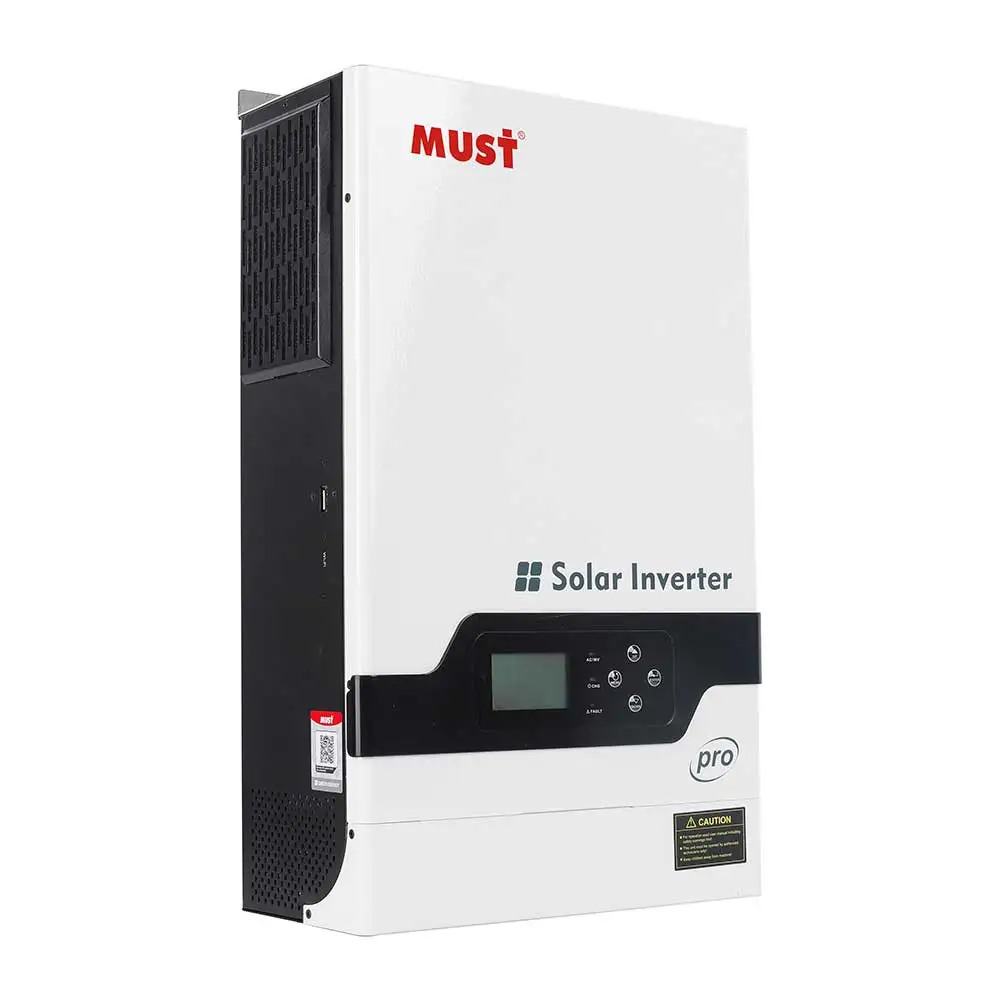

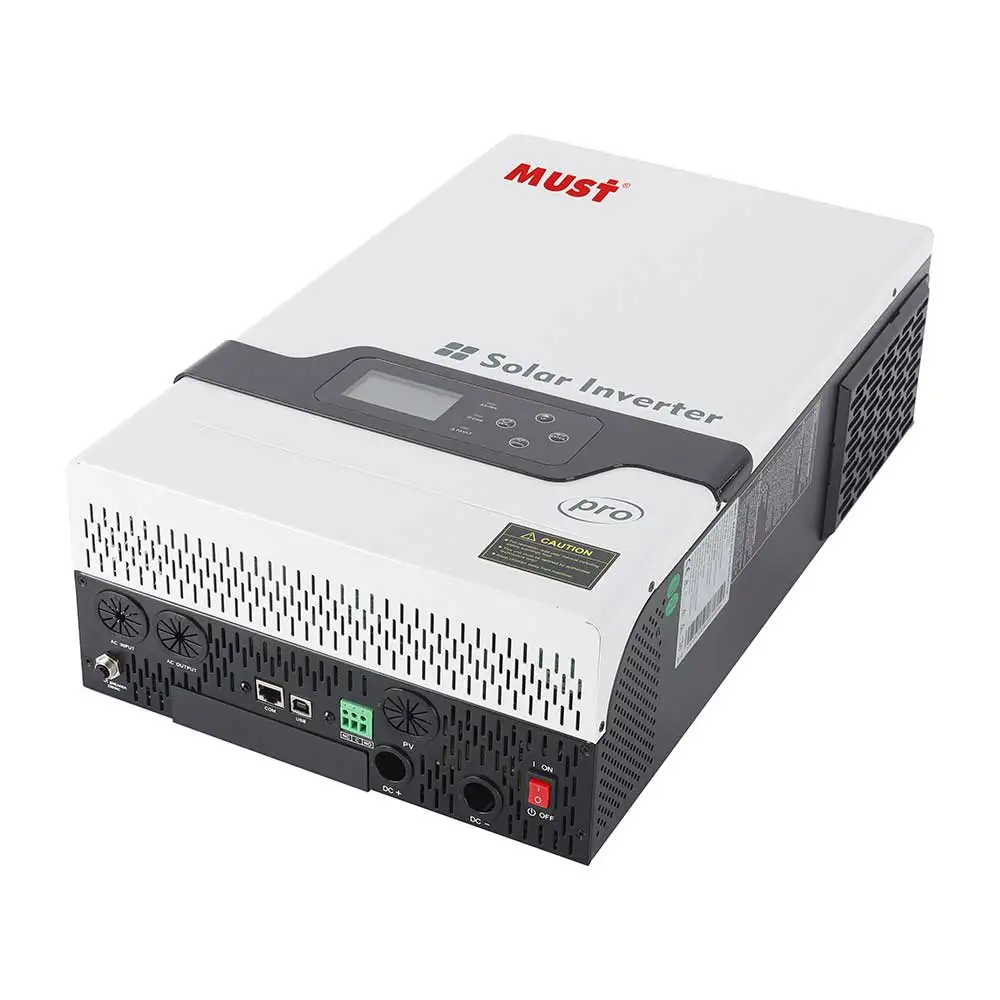

MUST PV1800 PH1800 PRO 450V 5.2KW 48V Hybrid Solar Inverter 6000W MPPT Charger
$780.49 – $900.95
Available in stock
People Also Viewed
-
Tewaycell 3.2V 340AH LiFePo4 Battery Pack 12V 24V 48V Solar Rechargeable - Tax Free
-
1000V Solar DC Fuses Set 6A-30A 10x38MM for PV System Short Circuit Protection $4.05 – $4.65
-
TONGOU 25mm² Terminals for Busbar Circuit Breaker Distribution Box Wire Connector $4.67
-
Waterproof DPST Marine Rocker Switch 30A 4 Pin LED 6V 12V 24V 110V 220V IP67 T85 $4.81 – $4.85
-
ANENG B12 Voltage Detector Test Pen Electric Screwdriver Probe Sensor $5.07
Description
The MUST High VOC ON OFF GRID Hybrid Solar Inverter, PV/PH1800 PRO, is a versatile and efficient power solution designed to meet your energy needs. This inverter features a pure sine wave output, smart LCD settings for easy customization, and a built-in MPPT 80/100A solar charge controller along with an AC charge controller. With a maximum PV array open circuit voltage of 450V and MPPT voltage range of 150-430Vdc, this inverter maximizes solar energy utilization. Operating without a battery, the PV/PH1800 PRO Series combines solar, AC utility, and battery power sources to ensure uninterrupted power supply. It provides overload, short circuit, and deep discharge protection, as well as a cold start function. With USB, RS485 monitoring functions, the ability to support various battery types, and mobile app remote monitoring, this inverter offers flexibility and convenience. It can also feed back energy to the grid, has a WIFI feature, and supports parallel operation. The PV/PH1800 PRO Inverter with its high efficiency of 93%, multiple protection features, and various power source compatibility, is a reliable choice for both residential and commercial applications. Shenzhen MUST ENERGY Power Co., Ltd, with over two decades of experience, ensures top-notch quality products. Providing a seamless blend of solar, battery, and grid power sources, this inverter is a compact and powerful solution to keep your essential appliances running efficiently even in challenging conditions.
